E Q U I P M E N T
With state-of-the-art equipment and a team of skilled technicians, we provide a comprehensive range of milling services tailored to your specifications. View our equipment below.
Milling
HAAS VF6
X- Axis (in): 64
Y- Axis (in): 32
Z- Axis (in): 30
Tool Capacity: 30
Table Size (in): 28 x 64
HAAS VF2
X- Axis (in): 30
Y- Axis (in): 16
Z- Axis (in): 19
Tool Capacity: 20
Table Size (in): 14 x 36
Summit 3.5 HBM
X- Axis (in): 50
Y- Axis (in): 60
Z- Axis (in): 20
Tool Capacity: 1
Table Size (in): 43 x 43
HAAS VF5
X- Axis (in): 50
Y- Axis (in): 21
Z- Axis (in): 16
Tool Capacity: 30
Table Size (in): 23 x 52
HAAS VF1
X- Axis (in): 20
Y- Axis (in): 16
Z- Axis (in): 20
Tool Capacity: 20
Table Size (in): 14 x 26
Acer EVS-3VKS
X- Axis (in): 26
Y- Axis (in): 13
Z- Axis (in): 16
Tool Capacity: 1
Table Size (in): 10 x 50
HAAS VF2 SS
X- Axis (in): 30
Y- Axis (in): 16
Z- Axis (in): 20
Tool Capacity: 25
Table Size (in): 14 x 36
Partner MB20
X- Axis (in): 40
Y- Axis (in): 21
Z- Axis (in): 24
Tool Capacity: 1
Table Size (in): 16 x 47
Turning
Daewoo Puma 400
Maximum Part Diameter (Chuck): 20"
Spindle Bore (Maximum Diameter Bar Stock): 4.0"
Between Centers (Maximum Diameter Bar Stock): 45"
Tool Capacity: 10 pos Turret
Daewoo Puma 240M
Maximum Part Diameter (Chuck): 26"
Spindle Bore (Maximum Diameter Bar Stock): 2.5"
Between Centers (Maximum Diameter Bar Stock): 90"
Tool Capacity: Single Post
*C-Axis
LeBlond 14” Regal
Maximum Part Diameter (Chuck): 12"
Spindle Bore (Maximum Diameter Bar Stock): 1.5"
Between Centers (Maximum Diameter Bar Stock): 28"
Tool Capacity: Single Post
Daewoo Puma 15
Maximum Part Diameter (Chuck): 23"
Spindle Bore (Maximum Diameter Bar Stock): 4.5"
Between Centers (Maximum Diameter Bar Stock): 60"
Tool Capacity: 12 pos Turret
HAAS
Maximum Part Diameter (Chuck): 20" ID/ 24" OD
Spindle Bore (Maximum Diameter Bar Stock): 3.5"
Between Centers (Maximum Diameter Bar Stock): 60"
Tool Capacity: Single Post
Cincinnati Hydrashift 12-1/2
Maximum Part Diameter (Chuck): 12.5"
Spindle Bore (Maximum Diameter Bar Stock): 1.5"
Between Centers (Maximum Diameter Bar Stock): 52"
Tool Capacity: Single Post
Daewoo Puma 12
Maximum Part Diameter (Chuck): 12"
Spindle Bore (Maximum Diameter Bar Stock): 3.0"
Between Centers (Maximum Diameter Bar Stock): 30"
Tool Capacity: 12 pos Turret
Hardinge 6/45
Maximum Part Diameter (Chuck): 7.0"
Spindle Bore (Maximum Diameter Bar Stock): 1.75"
Between Centers (Maximum Diameter Bar Stock): 20"
Tool Capacity: 12 pos Turret
*Bar Fed
*C-Axis
Cincinnati Hydrashift 26
Maximum Part Diameter (Chuck): 9.5"
Spindle Bore (Maximum Diameter Bar Stock): 2.125"
Between Centers (Maximum Diameter Bar Stock): 27"
Tool Capacity: 12 pos Turret
*C-Axis
Welding
Lincoln Electric Square Wave Tig 355
Maximum Amperage: 350
Maximum OCV: 80
Water Cooled

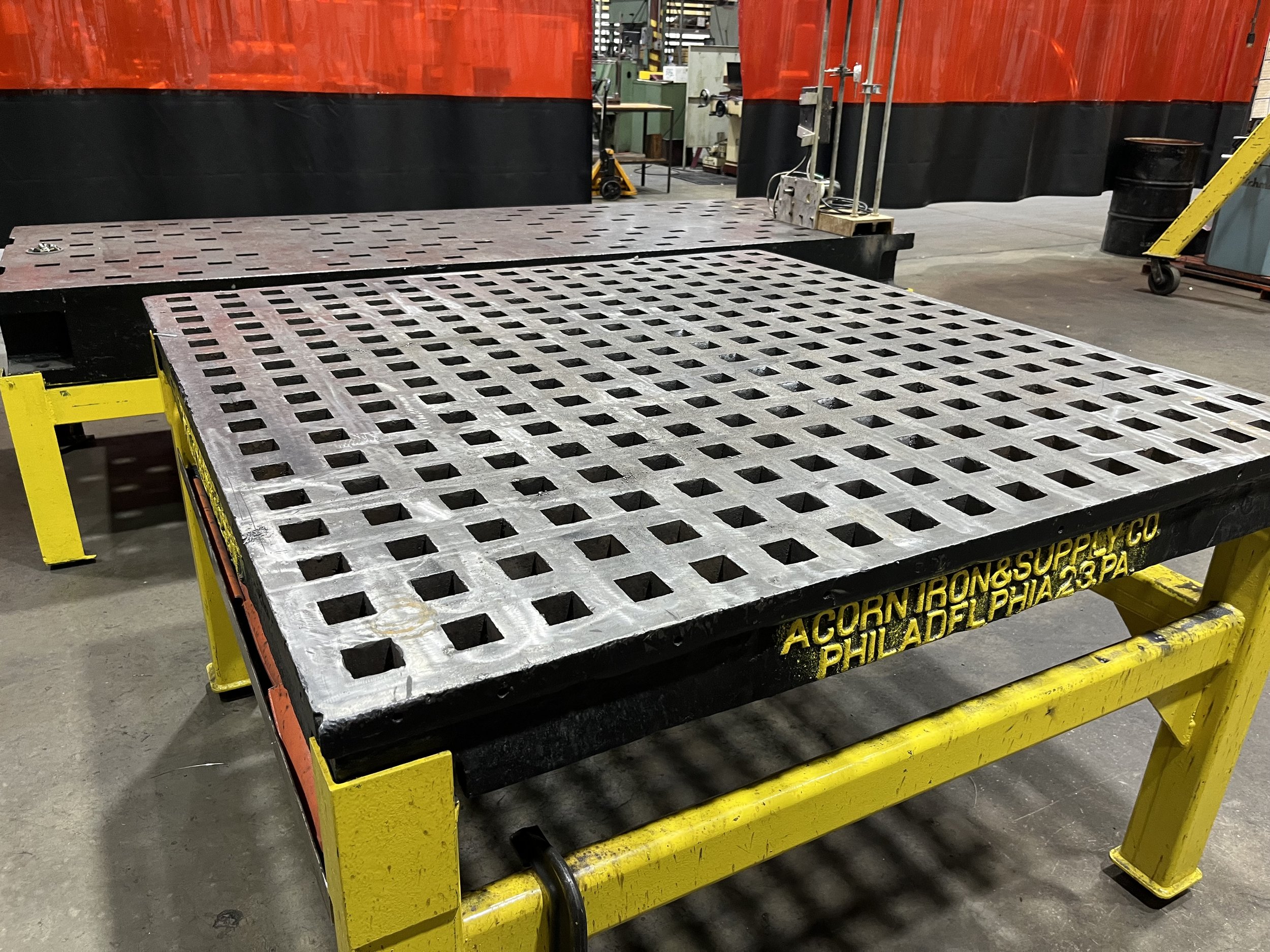

Acorn Welding Table

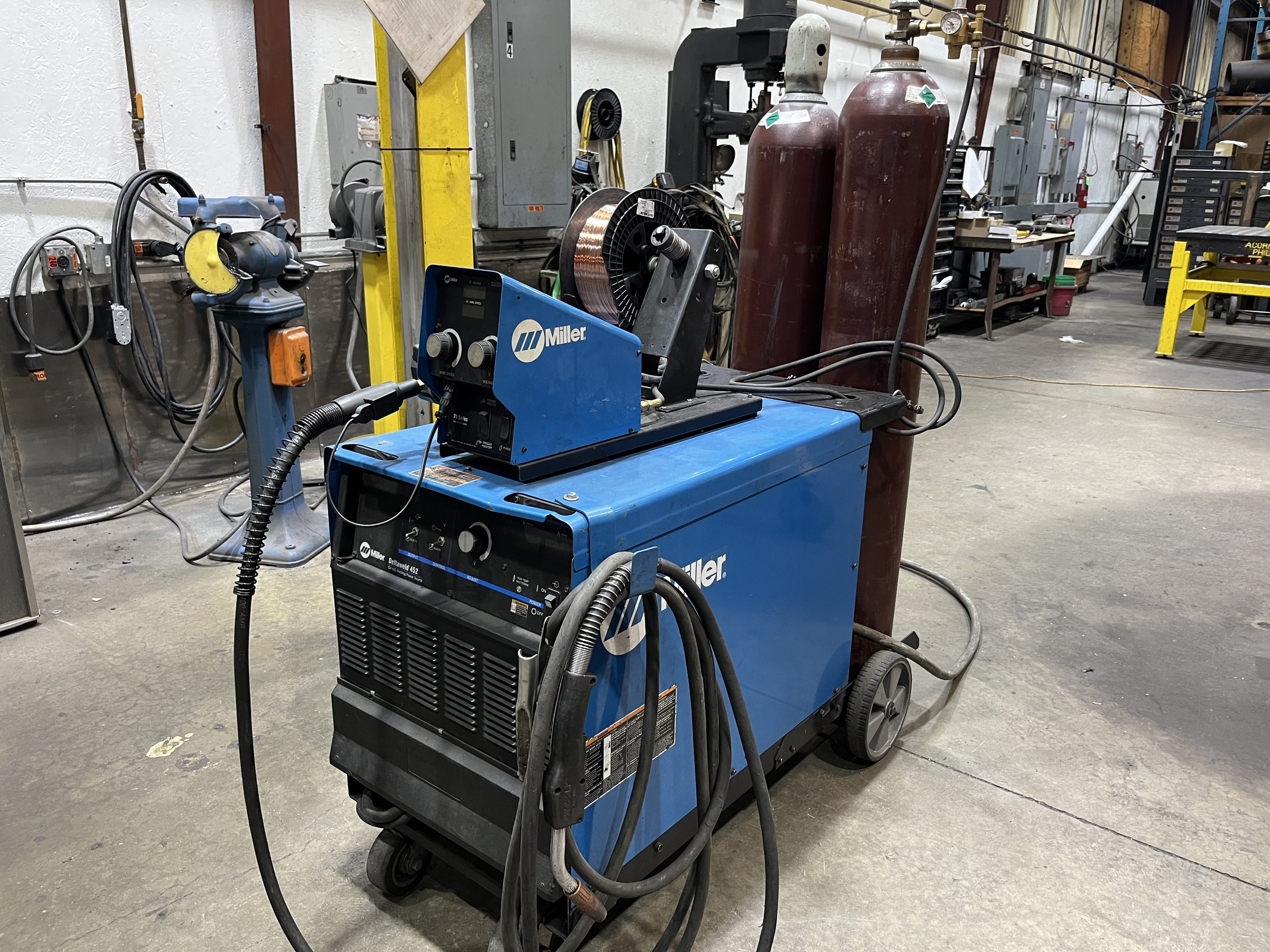

Miller Deltaweld 452
Processes: MIG, FCAW, CAC-A & SAW
Maximum Amperage: 450
Maximum OCV: 48
Acorn Welding Table
Millermatic 350
Processes: MIG, FCAW, GMAW-P
Maximum Amperage: 300
Maximum OCV: 32
Cutting and Fabrication
W.F. Wells CNC Band Saw

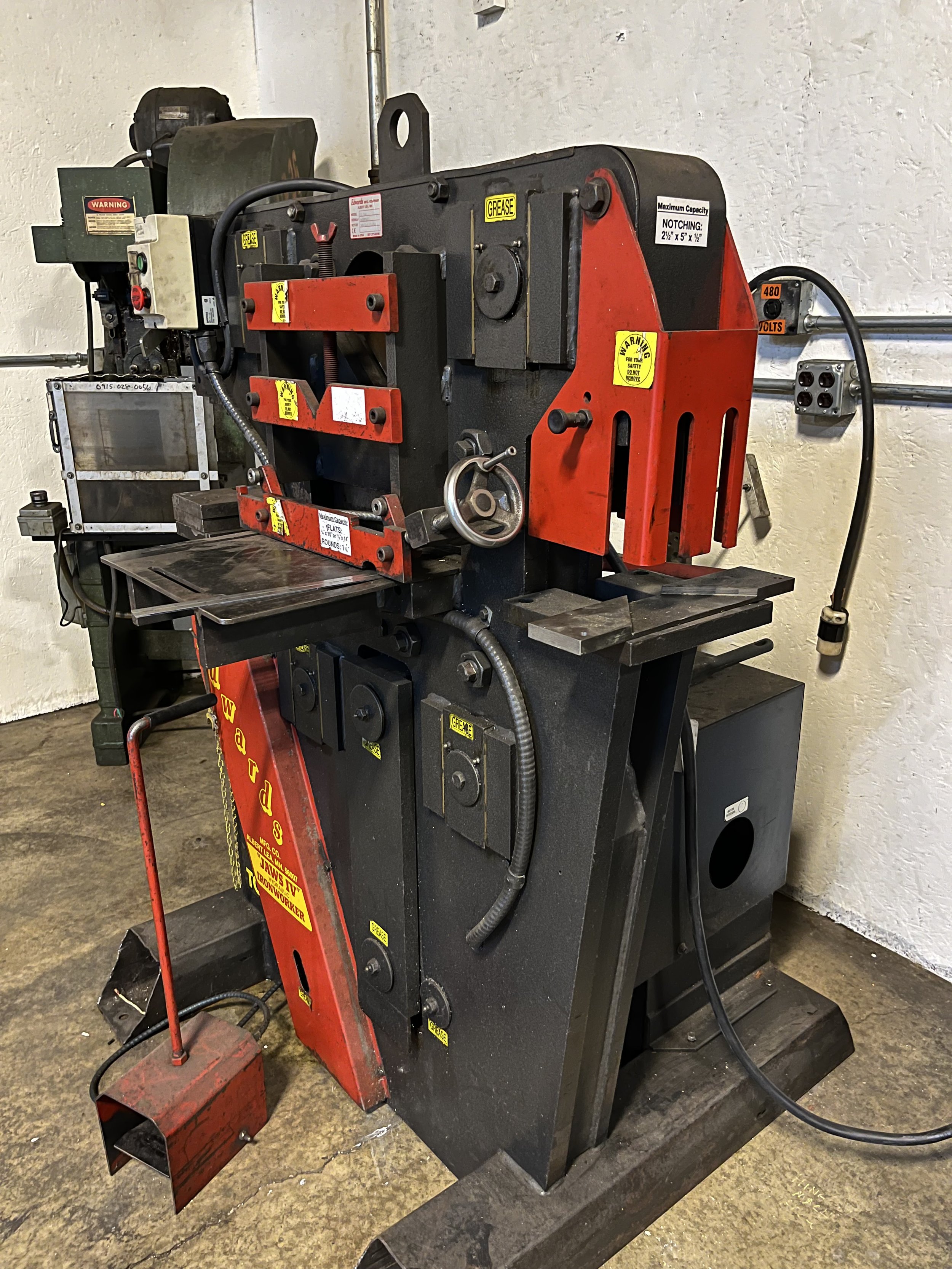

75 Ton Iron Worker
Processes Sheer, Press
Palmgren Vertical Band Saw 18”
Acer Surface Grinder
Scatchman Chop Saw
Bench Grinder & Buffer
Forming, Punching and Stamping
Rousselle 40 Ton Press
Bliss 75 Ton Press
Chicago Dreis & Krump 200 Ton Press
Quality Control
The FaroArm is a coordinate measuring machine which allows us to perform 3D inspection, tool certifications, CAD comparison, dimensional analysis and reverse engineering
Our FaroArm uses CAM2 Q software which is a feature-based measurement software. CAM2 Q enables direct measurement, constructions and dimensions of products that cannot be directly measured accurately or repeatedly such as an angle or bolt hole circle.
Additional Services
- Heat Treat
-Anodize
-Powder Coat
-Molding
-Sweco 12 c. ft. Vibro Finishing Mill
-Tool & Die Design and Build
-Prototype Build
-Reverse Engineering
-CAD Services
-Assembly Division
-Stocking Programs
-Repairs on your site
-2 Loading Bays
-3 Easy Access Loading Docks
-Truck Fleet
